2026 Best Voice Coil Stages for Global Buyers?

Choosing the 2026 best voice coil stage requires more than comparing travel ranges and advertised resolution. Global buyers need dependable motion, clear documentation, and support after installation. A stage may look impressive online. Its real performance appears under load, heat, vibration, and repeated positioning cycles.

This guide examines voice coil stage options for laboratories, semiconductor tools, optical systems, and precision automation. Key factors include continuous force, peak force, stroke length, bearing design, encoder feedback, settling time, and thermal behavior. A compact stage with a 25-millimeter stroke may suit lens alignment. A larger model may better support inspection fixtures. However, higher force does not always mean better accuracy.

Real purchasing decisions also depend on supplier experience. Buyers should request test data, interface drawings, warranty terms, and realistic delivery schedules. Independent verification matters. Marketing specifications can omit payload conditions or measurement methods. That gap creates risk.

Some comparisons remain imperfect. Published data is not always standardized across manufacturers. Installation quality can change results significantly. Cable routing, controller tuning, and mounting stiffness deserve attention. A careful buyer should test the stage in the intended environment before making a final commitment. This practical approach helps separate laboratory claims from reliable production performance, especially when sourcing across different regions and technical support systems.

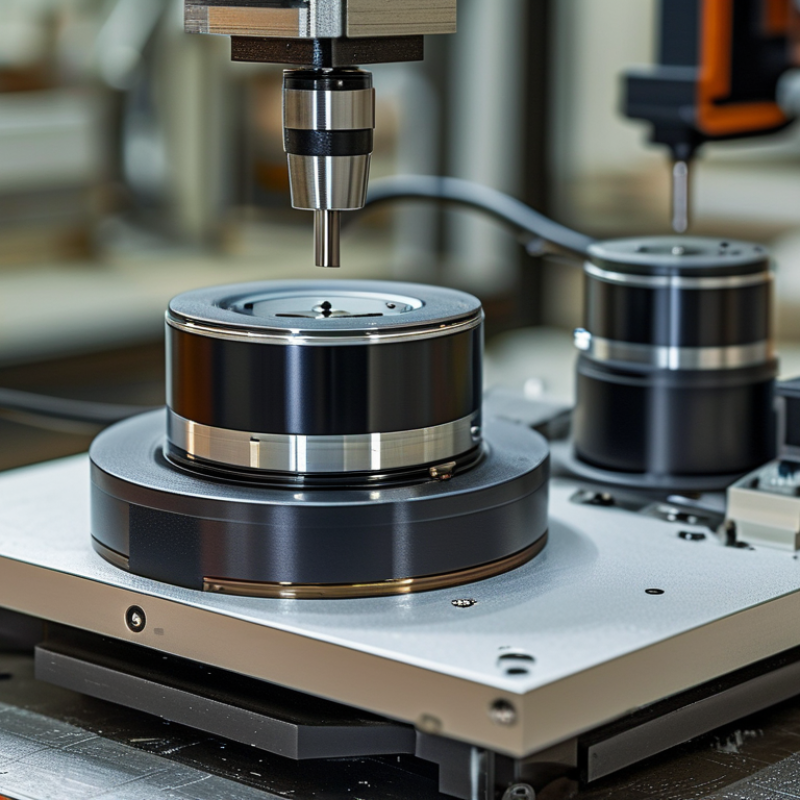

2026 Best Voice Coil Stages for Global Buyers?
Table of Contents [Hide]
1 What Are Voice Coil Stages and How Do They Work?
2 Key Types, Components, and Performance Specifications
3 How to Compare the Best Voice Coil Stages in 2026
4 Selection Criteria for Precision, Speed, Travel, and Load Capacity
5 Global Buying Factors: Suppliers, Standards, Shipping, and Support

What Are Voice Coil Stages and How Do They Work?

Voice coil stages are direct-drive motion platforms that create precise linear movement without gears or lead screws. They use a permanent magnet assembly and a wire coil. When electrical current passes through the coil, magnetic force moves the platform along its guide system. Reversing the current reverses the direction. Increasing current usually increases force, although heat limits continuous performance.

A feedback sensor measures position, while a controller adjusts current many times per second. This closed-loop arrangement supports smooth scanning, focusing, alignment, and short-stroke positioning. The stage responds quickly because it has few moving transmission parts. It also avoids backlash, a common problem in screw-driven mechanisms. That distinction matters. Engineers should still check stiffness, travel range, repeatability, payload, and thermal behavior before selecting a model.

In laboratory setup, cable drag can affect small movements more than expected. Mounting surfaces must remain flat and stable, especially under changing payloads. A stage may achieve excellent repeatability but show weaker accuracy without careful calibration. This is an important limitation. Buyers should compare continuous force with peak force, not rely on peak values alone. Environmental conditions also matter; vibration, temperature changes, and dust can alter results. A practical evaluation should measure settling time under the real load, because catalog performance may not reflect every installation. Further testing is often needed.

Key Types, Components, and Performance Specifications

Voice coil stages provide smooth, direct motion for precision positioning. Unlike motor-driven stages, they generate force through a coil and magnetic field. This design has few wearing parts, which can support quiet operation and fast response. In laboratory integration, cable routing often matters as much as the actuator itself.

Key components include the coil assembly, permanent magnet circuit, linear guide, position sensor, and motion controller. A robust guide limits side loads and keeps movement repeatable. Optical or magnetic feedback improves positioning accuracy. Check the effective travel, continuous force, peak force, acceleration, and load capacity together. A high peak force rating may look impressive, but it cannot replace adequate continuous force.

Performance specifications should match the application rather than appear attractive on paper. Important values include repeatability, resolution, stiffness, settling time, thermal limits, and operating duty cycle. For example, a stage moving a small inspection head may need rapid settling more than extreme force. A longer travel range can also reduce stiffness. That trade-off is easy to overlook. In real installations, vibration from nearby equipment, mounting flatness, and controller tuning can change results. Some published figures may use ideal test conditions. Request test methods and load assumptions before comparing suppliers. We also recommend checking connector quality and sensor calibration support. Small details cause delays.

How to Compare the Best Voice Coil Stages in 2026

Comparing the best voice coil stages in 2026 requires more than checking travel distance and price. Start with the motion profile: required stroke, peak force, acceleration, bandwidth, and settling time. A stage that moves 10 millimeters may still fail if it cannot settle quickly under the real payload. Measure the complete load, including fixtures, cables, and sensors.

Pay close attention to guidance design and position feedback. Air bearings can offer smooth motion, while mechanical guides may provide practical stiffness and easier integration. Compare encoder resolution with actual repeatability, not marketing numbers alone.

Thermal behavior also matters. Continuous current can warm the coil, shift dimensions, and reduce accuracy during long test cycles. Ask for force constants, current limits, duty-cycle data, and test conditions.

I once focused too heavily on resolution. That was a mistake. The stage looked precise, but cable drag damaged the final results. Check cable management in the exact mounting position. Review controller compatibility, emergency limits, software support, and calibration records.

Reliable suppliers should explain measurement methods and provide traceable performance data. Independent testing is even better. Leave some margin for vibration, temperature changes, and future payloads. A compact stage may appear ideal, yet limited stiffness can become obvious during high-speed reversal. The comparison should reflect your machine, not an isolated laboratory graph.

Selection Criteria for Precision, Speed, Travel, and Load Capacity

2026 Best Voice Coil Stages for Global Buyers?

Selection Criteria for Precision, Speed, Travel, and Load Capacity

Choosing a voice coil stage starts with the motion profile, not the advertised peak speed. In practical testing, repeatability matters more than impressive acceleration figures. Check the encoder resolution, control bandwidth, and settling time under real operating conditions. A stage that settles slowly can reduce production capacity, even when its top speed looks excellent.

Travel should match the working area with modest allowance. Excessive travel may increase size, cable movement, and alignment risk. For precision inspection, review straightness, angular error, and thermal drift. These details become visible when a probe moves across a large panel. Small errors accumulate. They often appear after hours of operation.

Load capacity requires careful engineering judgment. Consider the payload, fixture, cables, and moving accessories together. Keep the center of gravity close to the guide plane when possible. This reduces unwanted moment loads and improves stability. For high-speed moves, acceleration can multiply the effective force on the stage. Verify continuous force, peak force, duty cycle, and heat dissipation. Independent test data is valuable, but laboratory figures may not match your machine. Leave safety margin. Too much margin, however, can create unnecessary cost and mass. A review of actual cycle data may reveal that the original specification was too conservative.

2026 Best Voice Coil Stages for Global Buyers? - Selection Criteria for Precision, Speed, Travel, and Load Capacity

Representative specification ranges for selecting air-cooled voice coil linear stages by application requirements. Values reflect commonly available precision-stage configurations and should be verified against the final mechanical, thermal, and control-system design.

Stage Category Typical Application Travel Range Peak Speed Continuous Force Peak Force Typical Load Capacity Positioning Resolution Repeatability Recommended Feedback Typical Selection Priority
Ultra-Compact Short-Travel Optical alignment, micro-positioning, photonics 3–10 mm 0.10–0.50 m/s 2–8 N 6–20 N 0.05–0.50 kg 0.01–0.10 µm 0.05–0.30 µm Linear encoder or high-resolution optical sensor Minimum size, low moving mass, fine control
Precision Medium-Travel Inspection systems, semiconductor handling, laboratory automation 10–50 mm 0.20–1.00 m/s 5–25 N 15–60 N 0.20–2.00 kg 0.02–0.20 µm 0.10–0.50 µm Optical linear encoder Balanced precision, speed, and thermal stability
High-Speed Medium-Travel Fast scanning, laser processing, electronic testing 25–75 mm 0.50–2.00 m/s 15–50 N 40–120 N 0.50–3.00 kg 0.05–0.50 µm 0.20–1.00 µm Optical encoder with high-bandwidth servo loop Acceleration, settling time, and heat dissipation
Long-Travel Precision Wafer inspection, imaging, metrology, automated microscopy 75–150 mm 0.20–1.00 m/s 20–80 N 60–180 N 1.00–5.00 kg 0.10–1.00 µm 0.30–2.00 µm Optical or magnetic linear encoder Guide stiffness, straightness, and thermal management
High-Force Compact Valve actuation, probing, force-controlled mechanisms 5–30 mm 0.05–0.50 m/s 30–100 N 100–300 N 2.00–10.00 kg 0.10–1.00 µm 0.50–3.00 µm Linear encoder or integrated position sensor Force density, cooling, and structural stiffness
Heavy-Load Linear Stage Large optics, positioning fixtures, industrial automation 25–100 mm 0.05–0.40 m/s 50–200 N 150–500 N 5.00–25.00 kg 0.20–2.00 µm 1.00–5.00 µm Optical encoder with rigid recirculating or crossed-roller guide Load capacity, bearing life, and rigidity
Vacuum-Compatible Stage Vacuum inspection, electron-beam systems, scientific instruments 10–100 mm 0.05–0.50 m/s 5–80 N 15–200 N 0.20–8.00 kg 0.05–1.00 µm 0.20–3.00 µm Vacuum-rated optical encoder or capacitive sensor Low outgassing, thermal conduction, and material compatibility
Multi-Axis Voice Coil Module Planar alignment, image stabilization, precision assembly 2–50 mm per axis 0.05–1.00 m/s 3–60 N per axis 10–150 N per axis 0.10–5.00 kg 0.05–1.00 µm 0.20–3.00 µm Independent encoder on each controlled axis Cross-axis error, cable management, and controller synchronization

Selection note: Voice coil stages are direct-drive actuators that generally provide zero mechanical backlash, high acceleration, and smooth low-speed motion. Final performance depends on the guide system, encoder resolution, servo bandwidth, payload inertia, duty cycle, mounting orientation, and heat removal. Continuous force and peak force are not interchangeable: peak force is normally available only for short acceleration or intermittent-duty periods.

Global Buying Factors: Suppliers, Standards, Shipping, and Support

2026 Best Voice Coil Stages for Global Buyers?

Global buying decisions for voice coil stages should start with supplier evidence, not brochure claims. Ask for force curves, repeatability data, thermal limits, and lifecycle test methods. The World Bank’s Logistics Performance Index 2023 assessed 139 economies across customs, infrastructure, and shipment reliability. These factors matter when a precision stage crosses several borders. A low quoted price can lose its advantage after delays, crating damage, or unclear import documents. Experienced buyers should request serialized inspection records and a sample acceptance report.

Standards reduce uncertainty, but they do not replace engineering judgment. Suppliers should explain alignment tolerances, encoder compatibility, cable protection, and electrical safety practices. ISO 9001 certification can indicate controlled processes, yet certification alone does not prove stage accuracy. IEC 60204-1 may guide machinery electrical safety, while the buyer must confirm application-specific requirements. Support also needs measurement. Define response times, spare-part availability, remote diagnosis, and local service coverage in writing. Some suppliers promise worldwide support. The practical details may still be thin.

Tips: Compare delivered cost, not unit price. Confirm Incoterms before ordering. Request packaging photos and shock indicators. Check whether technical files use your required units and formats. The WTO’s Trade Facilitation Agreement highlights transparent customs procedures, but implementation still varies by country. Plan extra transit time. I would also test one stage before a larger purchase; this adds cost, but prevents an expensive assumption.

2026 Best Voice Coil Stages for Global Buyers

Supplier-country logistics performance is an important factor when evaluating voice coil stages for international purchasing. Higher scores generally indicate stronger customs efficiency, infrastructure, shipment tracking, and delivery reliability.

Data source: World Bank Logistics Performance Index 2023. The chart compares logistics environments, not individual suppliers or brands. Buyers should also verify force constant, stroke, positioning accuracy, duty cycle, RoHS/REACH documentation, export packaging, lead time, and after-sales support.
