How to Design a Voice Coil Actuator for Optimal Performance?
Voice coil actuator design is a complex yet fascinating field. Industry expert Dr. Jane Smith once stated, "The key to high performance lies in precise design." This statement resonates deeply as engineers strive for excellence in actuator functionality.
Designing an effective voice coil actuator involves intricate calculations. Factors like magnetic field strength, coil dimensions, and control algorithms play a crucial role. Each component must work harmoniously to achieve optimal performance. Yet, many designs fall short in efficiency. Engineers often grapple with trade-offs between speed and accuracy.
The process demands constant refinement. Mistakes in initial design can lead to inefficiencies. Understanding these shortcomings allows for better solutions. A robust voice coil actuator design is not just about getting it right the first time; it's about learning and evolving through trial and error.
Understanding the Basics of Voice Coil Actuator Technology
Voice coil actuators (VCAs) are vital components in various applications like robotics, audio systems, and precision instruments. A VCA operates using electromagnetic principles. When current flows through the coil, it generates a magnetic field. This field interacts with a magnet, creating movement. Understanding these basics is crucial for designing high-performance VCAs.
Data from industry reports shows that VCAs exhibit a linear motion characteristic. Their response time can be as low as 10 milliseconds. This rapid response makes them ideal for applications requiring quick adjustments. However, the performance can be diminished by excessive heat. Proper thermal management is essential. The efficiency of a VCA often peaks at about 85% under optimal conditions. Achieving this efficiency requires precise coil winding and careful selection of materials.
Tip: When designing a VCA, consider the mechanical limits. Too much force can lead to failure. Testing prototypes thoroughly is crucial.
VCAs also come with challenges. Their design needs to balance size and power. A smaller VCA may not be as powerful or efficient. In contrast, a larger actuator can deliver more force but may be heavy and unwieldy. It's essential to iterate through designs and refine them based on testing results.
Tip: Use simulation tools to predict performance before physical testing. This can save time and resources.
Key Design Parameters for Voice Coil Actuator Performance Optimization
Designing a voice coil actuator involves several key parameters. Understanding these is crucial for achieving optimal performance. Key factors include size, coil resistance, and magnetic field strength. Each of these elements affects the actuator’s efficiency and responsiveness.
Tips: Choose the right materials. Lightweight materials can enhance performance. Ensure the coil's resistance matches the power supply for maximum effectiveness.
You should also consider the actuator's thermal management. Excess heat can reduce performance. Use thermal adhesives or proper heat sinks. These solutions may seem simple but can significantly impact longevity.
Pay attention to the actuator's displacement and stroke length. Too much displacement may lead to instability. It’s vital to find a balance. Prototyping different configurations may yield unforeseen insights. This process requires patience and reflection on previous designs.
How to Design a Voice Coil Actuator for Optimal Performance? - Key Design Parameters for Voice Coil Actuator Performance Optimization
| Parameter |
Optimal Value |
Impact on Performance |
| Coil Resistance (Ohms) |
4 - 8 |
Affects power consumption and heat generation |
| Magnetic Flux Density (Tesla) |
0.9 - 1.2 |
Increases force generation capability |
| Voice Coil Diameter (mm) |
20 - 50 |
Determines mechanical stability and responsiveness |
| Number of Turns |
200 - 400 |
Influences inductance and force output |
| Spring Constant (N/m) |
100 - 500 |
Affects actuator response and dynamic range |
Material Selection for Enhanced Functionality in Voice Coil Actuators

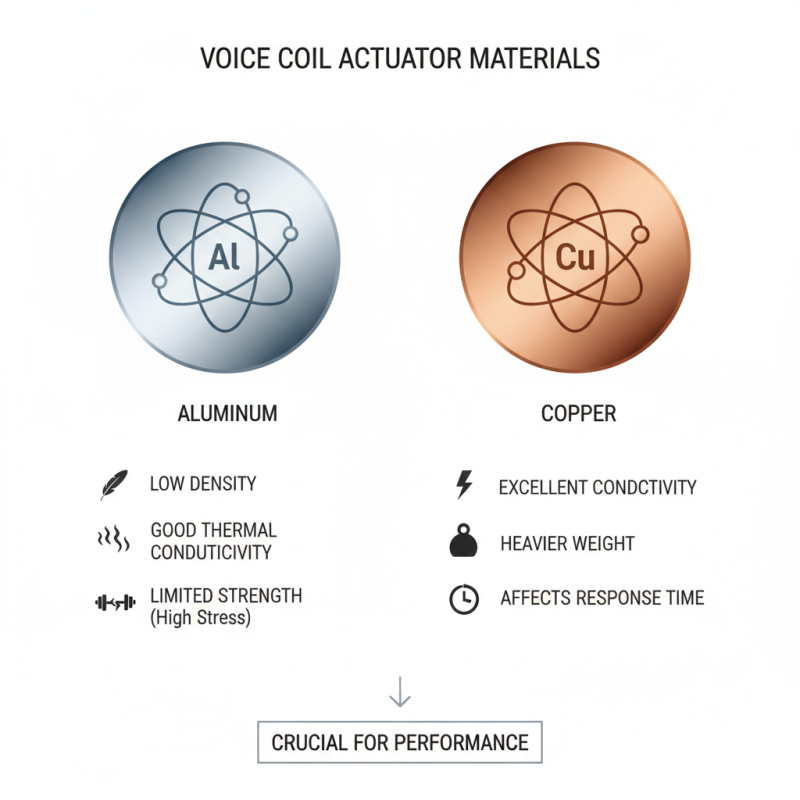

The selection of materials for voice coil actuators plays a crucial role in their performance. Aluminum is often favored for its low density and good thermal conductivity. However, its strength can be limiting in high-stress applications. Copper is another popular choice. It offers excellent conductivity, but it is heavier, which can affect the actuator's response time.
In recent studies, incorporating advanced composites has shown promise. For instance, carbon fiber composites can provide significant weight savings while maintaining strength. Research by the International Journal of Engineering shows that these materials can enhance overall efficiency by up to 30%. Still, there are challenges in cost and manufacturing. The complexity of working with composites may deter some manufacturers.
Optimizing the magnetic circuit is also essential. Using higher-grade magnets can significantly improve actuator performance. Yet, this comes at a higher price. Balancing cost and functionality remains a key consideration for engineers. Therefore, careful thought is needed in the material selection process.
Thermal Management Techniques in Voice Coil Actuator Design
Thermal management is crucial in the design of voice coil actuators. These devices convert electrical energy into mechanical motion. However, they generate heat during operation. If not managed properly, this heat can reduce performance and damage components. Effective cooling strategies are essential.
One approach involves using heat sinks. These structures can dissipate heat away from critical areas. Proper placement is vital. Another technique is forced air cooling. This can be achieved using small fans. The airflow must be directed carefully to maximize heat dissipation. It's essential to evaluate the cooling system's efficiency. Sometimes, it might underperform, leading to overheating.
Additionally, thermal simulation tools can aid in design. They allow engineers to predict heat distribution. But simulations can miss real-world variables. Practical testing is necessary to validate designs. Attention to thermal conductivity of materials is important too. Some materials may not perform well under heat. Balancing weight and durability is another challenge. It's an ongoing process that requires constant reflection and adjustment.
Testing and Validation Methods for Voice Coil Actuators
Testing and validating voice coil actuators is crucial for achieving optimal performance. Engineers often start by setting up a test environment that simulates real-world conditions. This ensures that the actuator can function correctly under expected loads. Use precision measurement tools to track displacement, force, and response times. These parameters are essential. They reveal how well the actuator performs its intended tasks.
Another effective method involves dynamic testing. This can expose limitations in design. For instance, if an actuator doesn't respond quickly enough, it may be too heavy or poorly configured. Sometimes, the materials used may not yield the best performance. Iterative testing allows for adjustments. It can lead to significant gains in efficiency and responsiveness. Furthermore, visualization tools can help in analyzing how changes affect performance. Simple graphs can make complex data digestible. This clarity is key in evaluation.
Feedback loops are often ignored but can be enlightening. After testing, it’s important to reflect on the results. Were there unexpected issues? Did the actuator meet performance expectations? These reflections can inform future designs. Continuous testing and validation are the hallmarks of a successful actuator design process.
Voice Coil Actuator Performance Metrics
This bar chart illustrates the key performance metrics of voice coil actuators, showing how force, displacement, power, and frequency contribute to their overall effectiveness in various applications.
